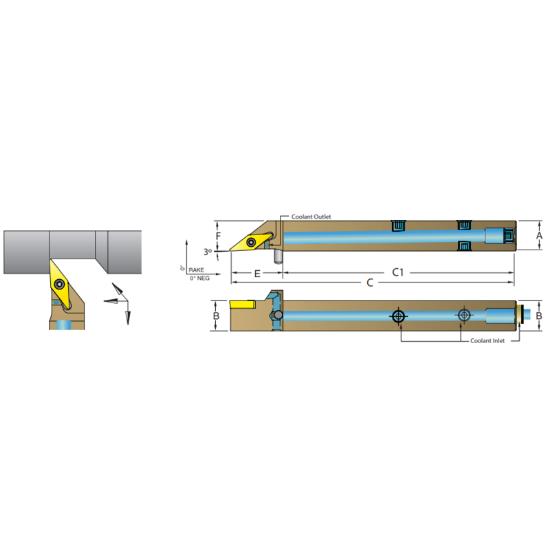

Picture of DORIAN ASVNCL1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

DORIAN ASVNCL1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

ANSI: ASVNCL1212-K16

ISO: ASVNCL1212-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60921
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 0.4720
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 4.2100 106.93MM
Tool Over Hang 1.2600
Lead Angle 93°
Clearance Angle 50.0°
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Insert Style VC
Inter/Extern External
Hand R/L Left
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
