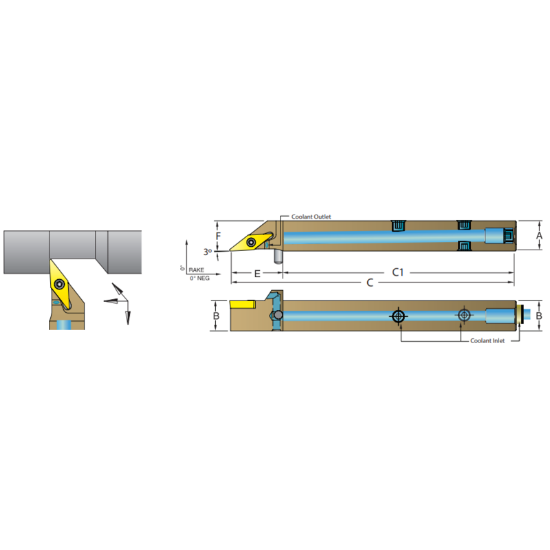

Picture of DORIAN ASVNCL1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASVNCL1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASVNCL1212-H11

ISO: ASVNCL1212-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60917
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning, Swiss
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Clearance Angle 50.0°
Insert Size Ic 11 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Tool Over Hang 0.9840
Shank/Pilot Dia 0.4724 12.00MM
Lead Angle 93°
Tool Width 0.4720
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Coolant Thru Yes
Insert Style VC
Hand R/L Left
