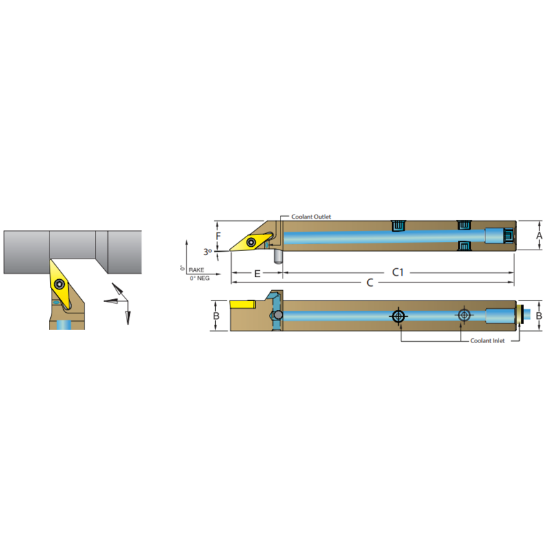

Picture of DORIAN ASVNCL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

DORIAN ASVNCL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

ANSI: ASVNCL08-3A

ISO: ASVNCL08-3A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60742
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Lead Angle 93°
Overall Len 4.2500 107.95MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Clearance Angle 50.0°
Tool Over Hang 1.2500
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VC
Coolant Thru Yes
