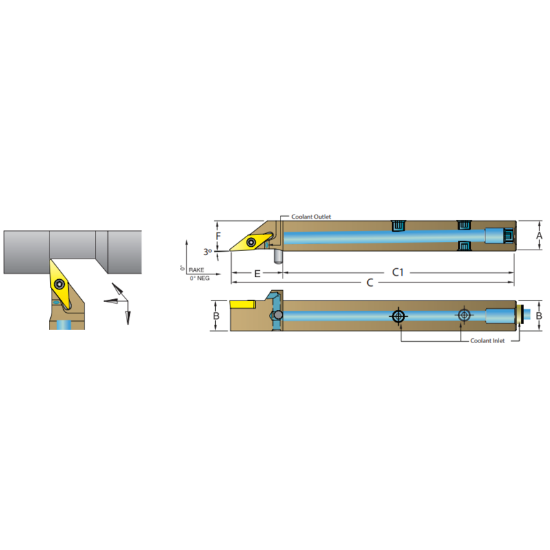

Picture of DORIAN ASVNCL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASVNCL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASVNCL08-2A

ISO: ASVNCL08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60739
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 11 "21"
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Overall Len 4.0000 101.60MM
Clearance Angle 50.0°
Lead Angle 93°
Tool Over Hang 1.0000
Cutting & Machining Properties
Coolant Thru Yes
Insert Style VC
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
