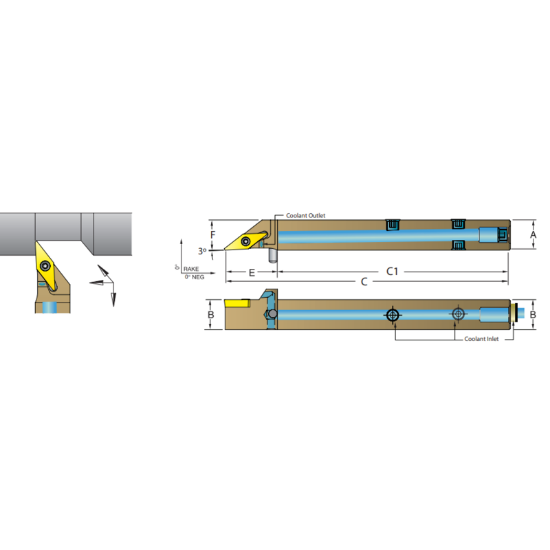

Picture of DORIAN ASVNBR2020-K16 35.0° Swiss Square 0.787 Shank 5.200 OAL

DORIAN ASVNBR2020-K16 35.0° Swiss Square 0.787 Shank 5.200 OAL

ANSI: ASVNBR2020-K16

ISO: ASVNBR2020-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60890
Delivery date: 3-5 days
$127.06

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert Type Positive
Application Ext.Turning, Swiss
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Tool Over Hang 1.2600
Clearance Angle 50.0°
Overall Len 5.2000 132.08MM
Tool Width 0.7870
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VB
Hand R/L Right
