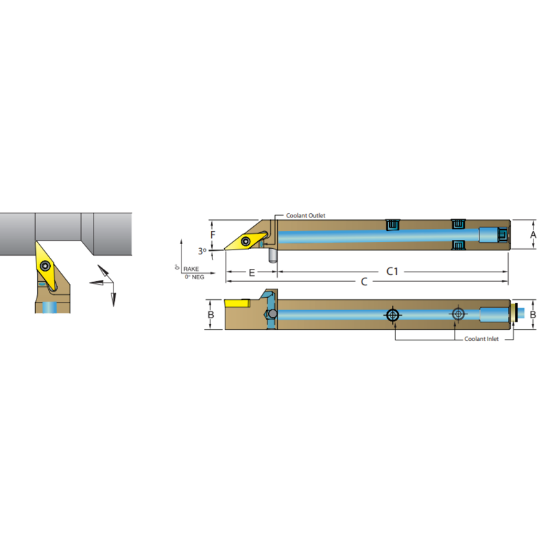

Picture of DORIAN ASVNBL1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASVNBL1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASVNBL1010-H11

ISO: ASVNBL1010-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60883
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Tool Width 0.3940
Clearance Angle 50.0°
Lead Angle 93°
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 3.9400 100.08MM
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.9840
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
Coolant Thru Yes
Insert Style VB
