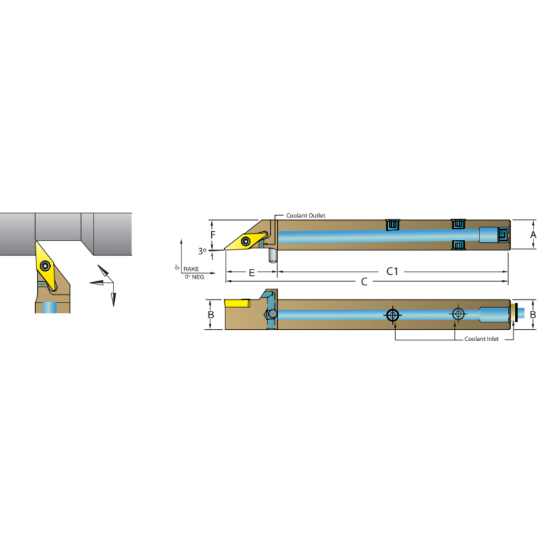

Picture of DORIAN ASVNBL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

DORIAN ASVNBL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

ANSI: ASVNBL08-3A

ISO: ASVNBL08-3A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60730
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Tool Over Hang 1.2500
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 4.2500 107.95MM
Insert Size Ic 16 "33"
Lead Angle 93°
Cutting & Machining Properties
Insert Style VB
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
