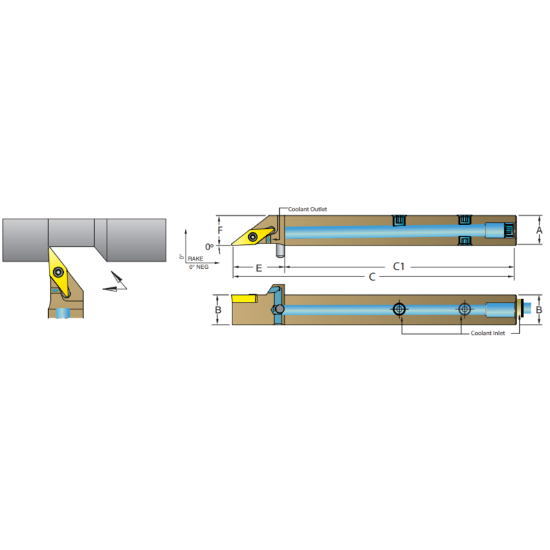

Picture of DORIAN ASVACR1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

DORIAN ASVACR1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

ANSI: ASVACR1212-K16

ISO: ASVACR1212-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60906
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Tool Width 0.4720
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.2600
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.4724 12.00MM
Clearance Angle 53.0°
Lead Angle 90°
Overall Len 4.2100 106.93MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Coolant Thru Yes
Insert Style VC
