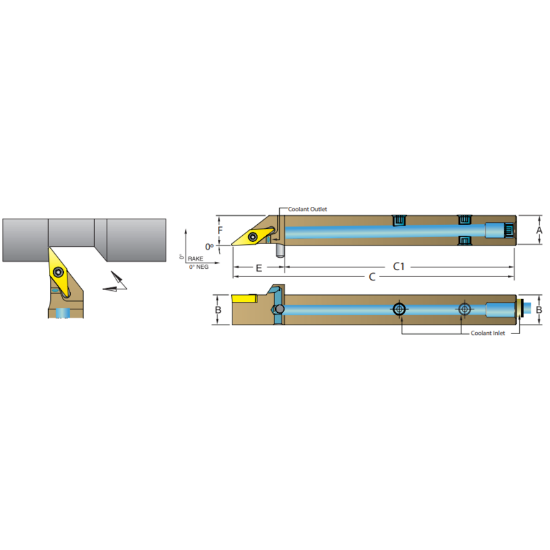

Picture of DORIAN ASVACR1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASVACR1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASVACR1212-H11

ISO: ASVACR1212-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60904
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Over Hang 0.9840
Tool Width 0.4720
Insert Size Ic 11 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Lead Angle 90°
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Clearance Angle 53.0°
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Style VC
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
