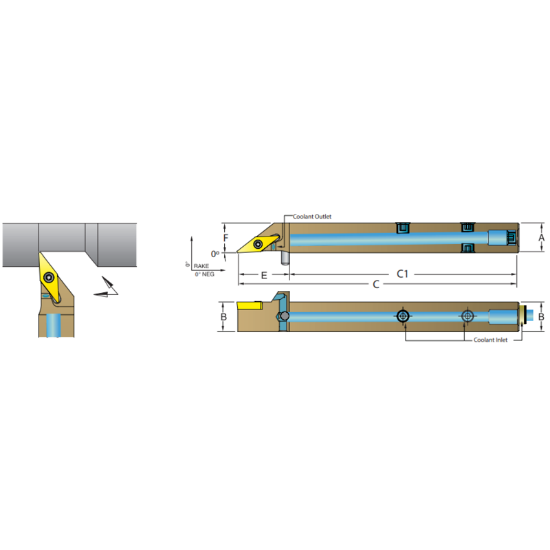

Picture of DORIAN ASVABL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASVABL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASVABL08-2A

ISO: ASVABL08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60724
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Shipping State Texas
Insert Application General Purpose
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Lead Angle 90°
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 1.0000
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 53.0°
Tool Width 0.5000
Cutting & Machining Properties
Hand R/L Left
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Coolant Thru Yes
