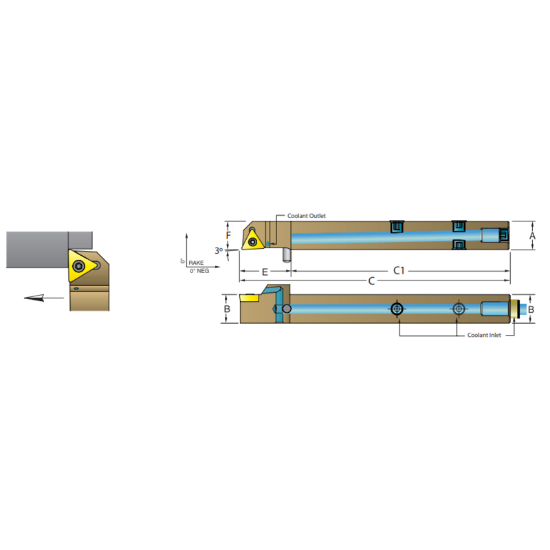

Picture of DORIAN ASTNCR1212-H11 Triangle Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASTNCR1212-H11 Triangle Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASTNCR1212-H11

ISO: ASTNCR1212-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60860
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Package Size 1
Dimensional Specifications
Lead Angle 93°
Tool Width 0.4720
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 11 "21"
Overall Len 3.9400 100.08MM
Cutting & Machining Properties
Insert Style TC
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru Yes
