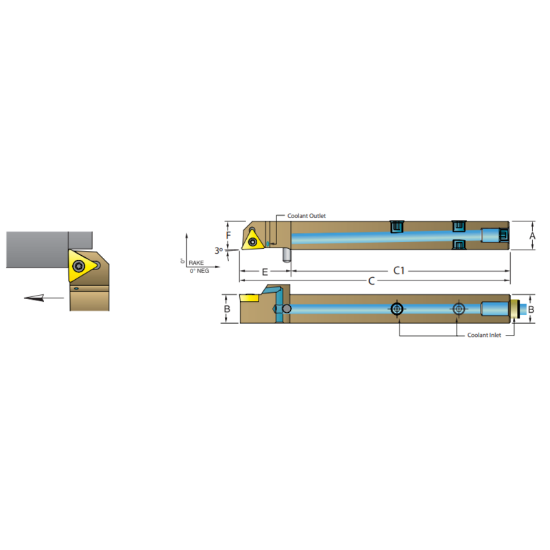

Picture of DORIAN ASTNCR1010-H11 Triangle Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASTNCR1010-H11 Triangle Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASTNCR1010-H11

ISO: ASTNCR1010-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60858
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.9840
Insert Size Ic 11 "21"
Overall Len 3.9400 100.08MM
Tool Width 0.3940
Shank/Pilot Dia 0.3937 10.00MM
Lead Angle 93°
Cutting & Machining Properties
Insert Style TC
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
