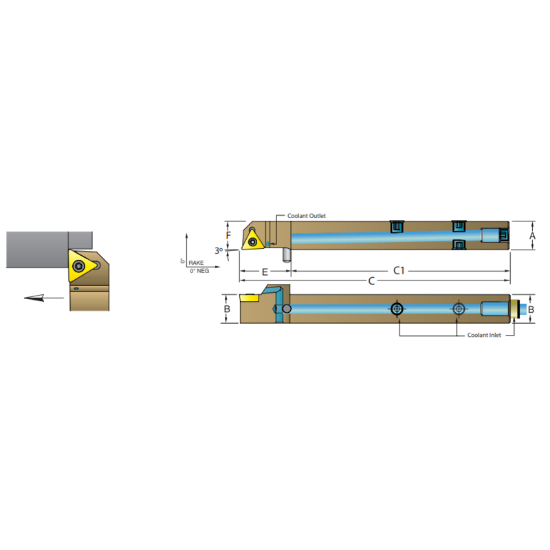

Picture of DORIAN ASTNCL1616-H16 Triangle Swiss Square 0.629 Shank 3.940 OAL

DORIAN ASTNCL1616-H16 Triangle Swiss Square 0.629 Shank 3.940 OAL

ANSI: ASTNCL1616-H16

ISO: ASTNCL1616-H16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60865
Delivery date: 3-5 days
$105.31

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert Type Positive
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Overall Len 3.9400 100.08MM
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16 "32"
Tool Width 0.6300
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Cutting & Machining Properties
Insert Style TC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Hand R/L Left
