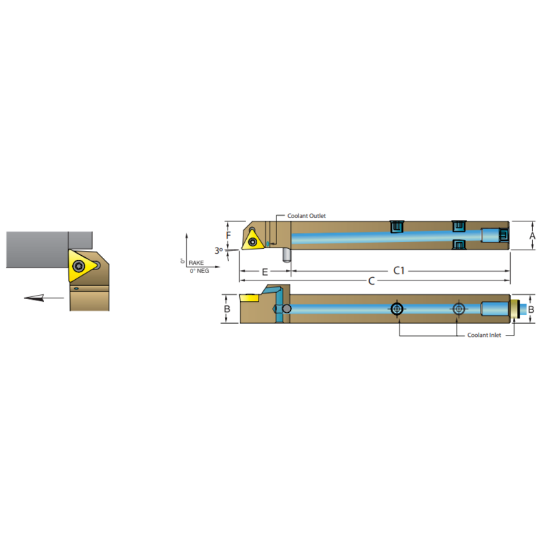

Picture of DORIAN ASTNCL1010-H11 Triangle Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASTNCL1010-H11 Triangle Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASTNCL1010-H11

ISO: ASTNCL1010-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60859
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Tool Width 0.3940
Shank/Pilot Dia 0.3937 10.00MM
Lead Angle 93°
Insert Size Ic 11 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Overall Len 3.9400 100.08MM
Tool Over Hang 0.9840
Cutting & Machining Properties
Hand R/L Left
Insert Style TC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
