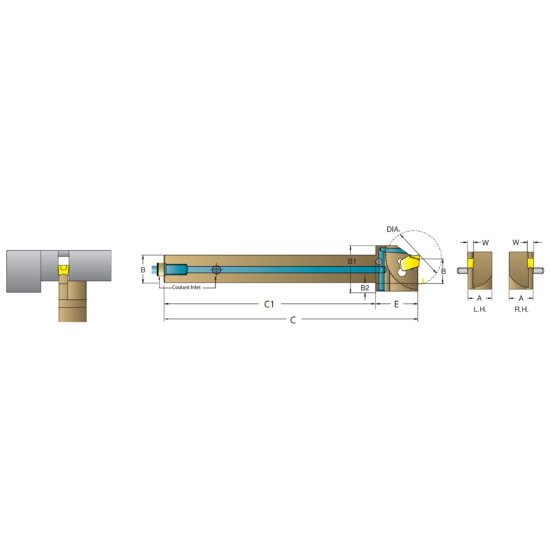

Picture of DORIAN ASGTHR1616-H02 Stick Tool Press In Square 0.629 Shank 3.940 OAL

DORIAN ASGTHR1616-H02 Stick Tool Press In Square 0.629 Shank 3.940 OAL

ANSI: ASGTHR1616-H02

ISO: ASGTHR1616-H02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62926
Delivery date: 3-5 days
$122.31

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Grooving, Parting, Swiss
Insert/Tool Tool
Insert Application General Purpose
Insert Type Positive
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Overall Len 3.9400 100.08MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 3.9370
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Width 0.6300
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style SG
Inter/Extern External
Hand R/L Right
