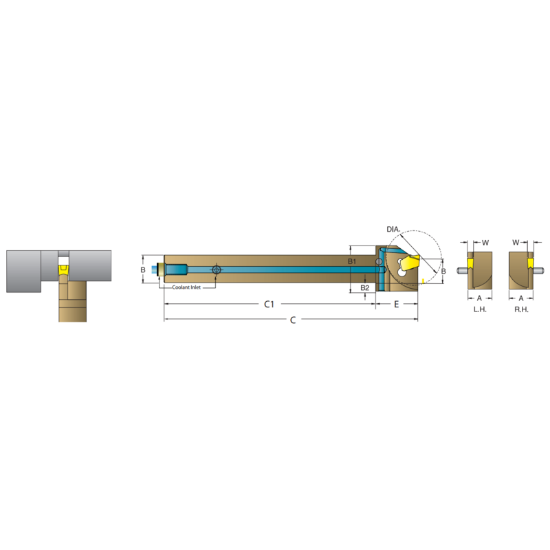

Picture of DORIAN ASGTHR1010-H03 Stick Tool Press In Square 0.393 Shank 3.940 OAL

DORIAN ASGTHR1010-H03 Stick Tool Press In Square 0.393 Shank 3.940 OAL

ANSI: ASGTHR1010-H03

ISO: ASGTHR1010-H03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62932
Delivery date: 3-5 days
$113.77

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Grooving, Parting
Made In USA No
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Tool Width 0.3940
Tool Over Hang 3.9370
Insert Size Ic 3
Shank/Pilot Dia 0.3937 10.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Overall Len 3.9400 100.08MM
Cutting & Machining Properties
Insert Style SG
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru Yes
Inter/Extern External
