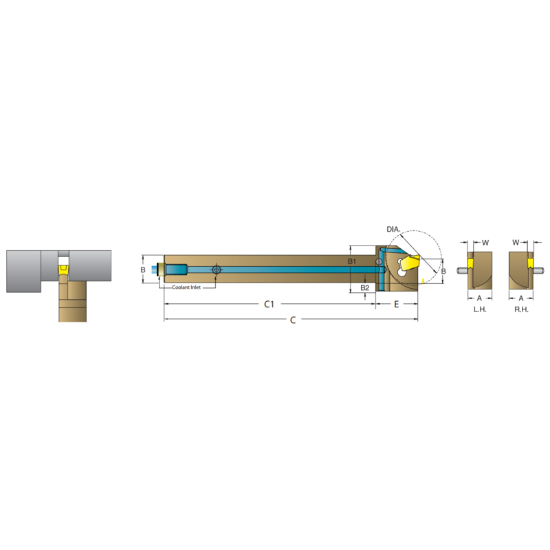

Picture of DORIAN ASGTHR08-2A Stick Tool Press In Square 0.500 Shank 4.000 OAL

DORIAN ASGTHR08-2A Stick Tool Press In Square 0.500 Shank 4.000 OAL

ANSI: ASGTHR08-2A

ISO: ASGTHR08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62942
Delivery date: 3-5 days
$119.45

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting, Swiss
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Overall Len 4.0000 101.60MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 3.9370
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Style SG
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Hand R/L Right
