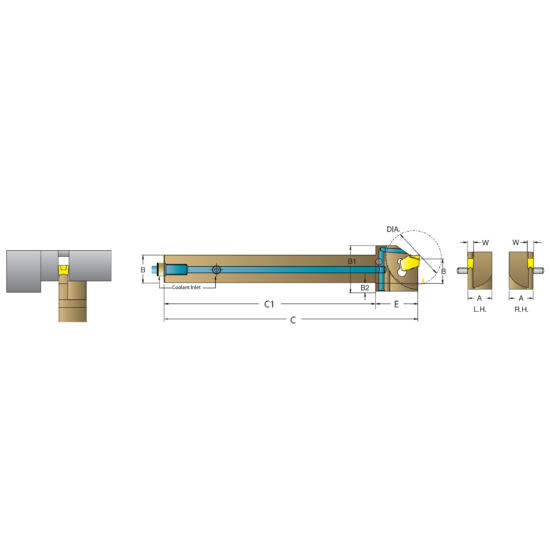

Picture of DORIAN ASGTHL2020-K03 Stick Tool Press In Square 0.787 Shank 4.920 OAL

DORIAN ASGTHL2020-K03 Stick Tool Press In Square 0.787 Shank 4.920 OAL

ANSI: ASGTHL2020-K03

ISO: ASGTHL2020-K03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62939
Delivery date: 3-5 days
$127.06

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Package Size 1
Application Swiss, Ext.Grooving, Parting
Made In USA No
Insert Application General Purpose
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.9200 124.97MM
Tool Width 0.7870
Insert Size Ic 3
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 3.9370
Machine Side Connection Size 0.7874 20.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style SG
Inter/Extern External
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
