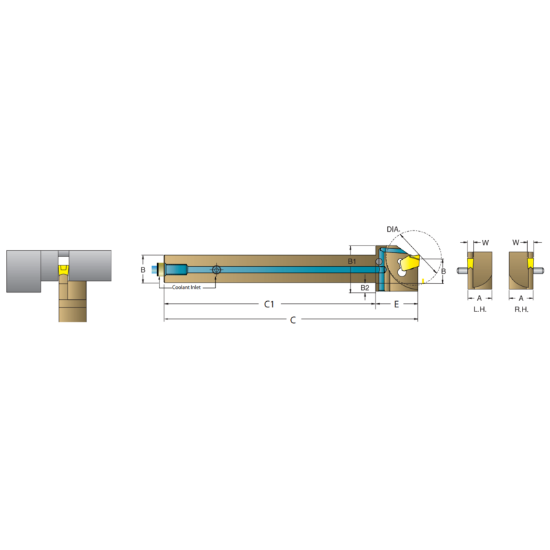

Picture of DORIAN ASGTHL1616-H03 Stick Tool Press In Square 0.629 Shank 3.940 OAL

DORIAN ASGTHL1616-H03 Stick Tool Press In Square 0.629 Shank 3.940 OAL

ANSI: ASGTHL1616-H03

ISO: ASGTHL1616-H03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62937
Delivery date: 3-5 days
$122.31

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert Application General Purpose
Application Swiss, Ext.Grooving, Parting
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Width 0.6300
Insert Size Ic 3
Shank/Pilot Dia 0.6299 16.00MM
Machine Side Connection Size 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Tool Over Hang 3.9370
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
Insert Style SG
Inter/Extern External
