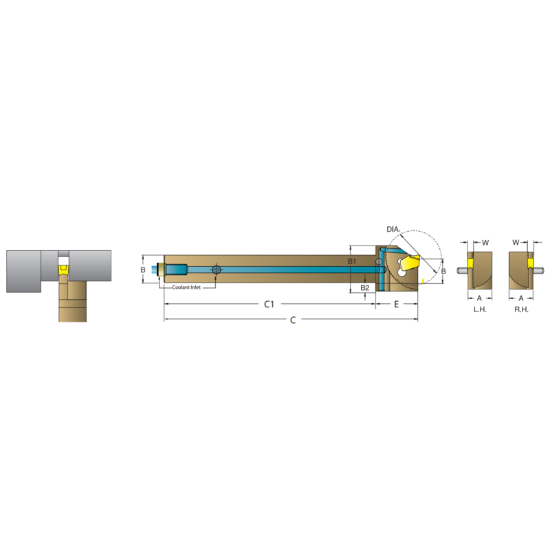

Picture of DORIAN ASGTHL1010-H02 Stick Tool Press In Square 0.393 Shank 3.940 OAL

DORIAN ASGTHL1010-H02 Stick Tool Press In Square 0.393 Shank 3.940 OAL

ANSI: ASGTHL1010-H02

ISO: ASGTHL1010-H02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62923
Delivery date: 3-5 days
$113.77

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting, Swiss
Insert Type Positive
Package Size 1
Made In USA No
Shipping State Texas
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 2
Overall Len 3.9400 100.08MM
Shank/Pilot Dia 0.3937 10.00MM
Tool Width 0.3940
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 3.9370
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SG
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
