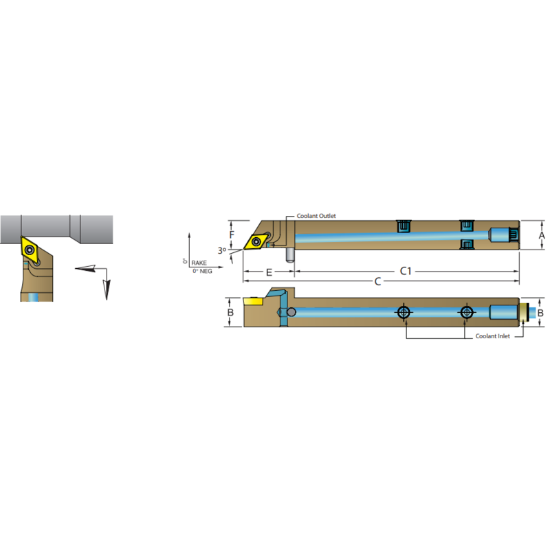

Picture of DORIAN ASDNCL1010-H07 55.0° Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASDNCL1010-H07 55.0° Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASDNCL1010-H07

ISO: ASDNCL1010-H07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60811
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Lead Angle 93°
Overall Len 3.9400 100.08MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.9840
Tool Width 0.3940
Insert Size Ic 07 "21"
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
Hand R/L Left
