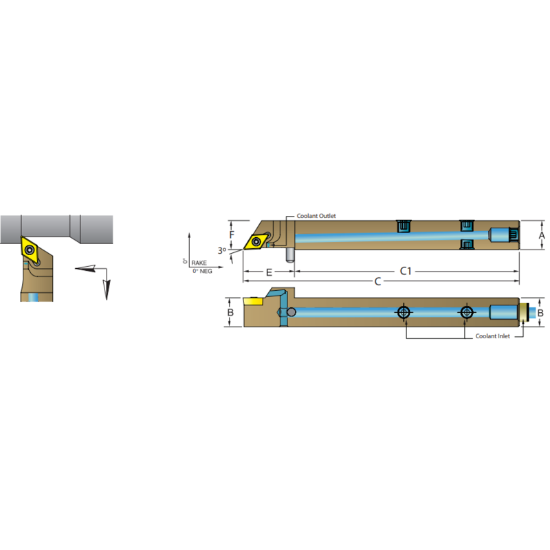

Picture of DORIAN ASDNCL08-3A 55.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASDNCL08-3A 55.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASDNCL08-3A

ISO: ASDNCL08-3A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60712
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Clearance Angle 27.0°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Width 0.5000
Insert Size Ic 11 "32"
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Left
Inter/Extern External
