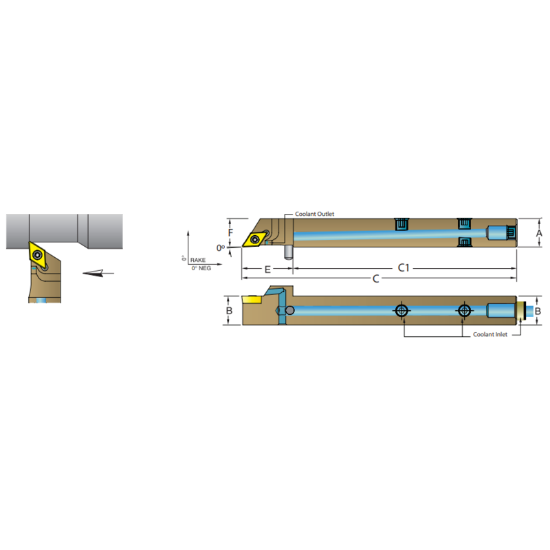

Picture of DORIAN ASDACR08-3A 55.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASDACR08-3A 55.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASDACR08-3A

ISO: ASDACR08-3A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60705
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Made In USA No
Shipping State Texas
Insert Application General Purpose
Insert/Tool Tool
Dimensional Specifications
Lead Angle 90°
Tool Width 0.5000
Insert Size Ic 11 "32"
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Coolant Thru Yes
Hand R/L Right
