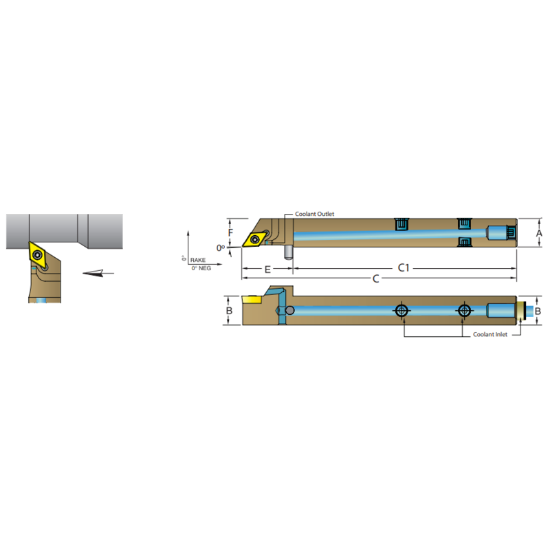

Picture of DORIAN ASDACL1212-H07 55.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASDACL1212-H07 55.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASDACL1212-H07

ISO: ASDACL1212-H07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60801
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Tool Width 0.4720
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Tool Over Hang 0.9840
Shank/Pilot Dia 0.4724 12.00MM
Insert Size Ic 07 "21"
Lead Angle 90°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Coolant Thru Yes
Hand R/L Left
