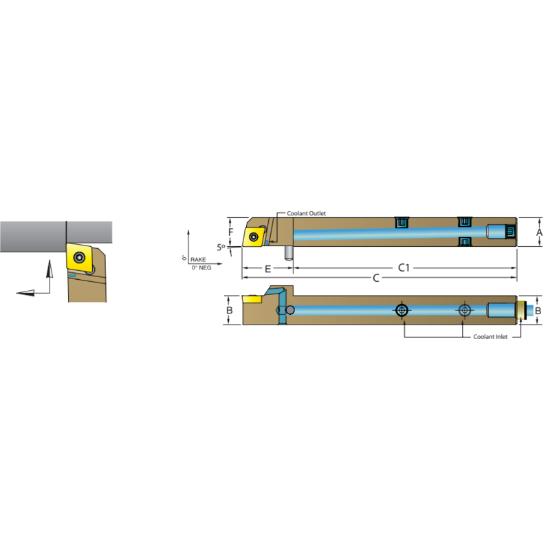

Picture of DORIAN ASCNCR1212-H09 80.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASCNCR1212-H09 80.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASCNCR1212-H09

ISO: ASCNCR1212-H09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60776
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Application Ext.Turning, Swiss
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Insert Size Ic 09 "32"
Tool Over Hang 0.9840
Tool Width 0.4720
Machine Side Connection Size 0.4724 12.00MM
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern External
Coolant Thru Yes
Insert Style CC
Hand R/L Right
