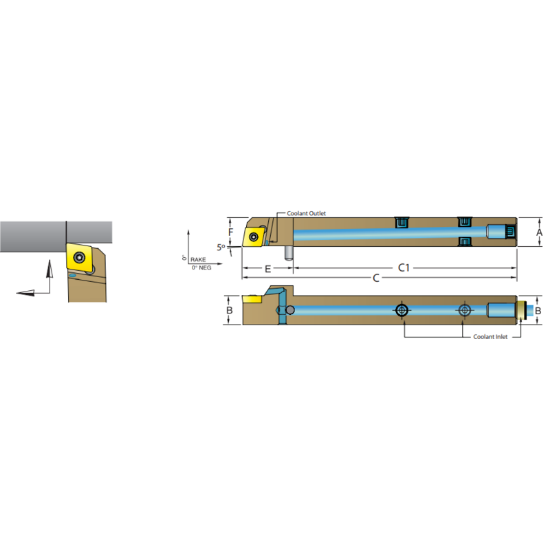

Picture of DORIAN ASCNCR1212-H06 80.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASCNCR1212-H06 80.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASCNCR1212-H06

ISO: ASCNCR1212-H06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60772
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Ext.Turning, Swiss
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Tool Over Hang 0.9840
Insert Size Ic 06 "21"
Tool Width 0.4720
Lead Angle 95°
Cutting & Machining Properties
Hand R/L Right
Insert Style CC
Inter/Extern External
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
