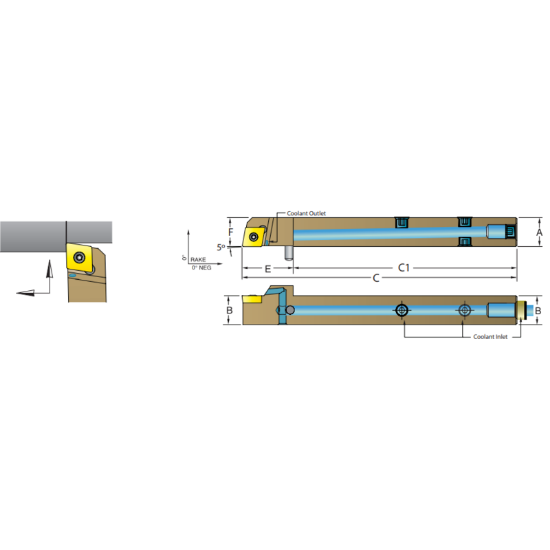

Picture of DORIAN ASCNCR1010-H06 80.0° Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASCNCR1010-H06 80.0° Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASCNCR1010-H06

ISO: ASCNCR1010-H06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60770
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.9840
Insert Size Ic 06 "21"
Lead Angle 95°
Shank/Pilot Dia 0.3937 10.00MM
Tool Width 0.3940
Overall Len 3.9400 100.08MM
Cutting & Machining Properties
Insert Style CC
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Coolant Thru Yes
