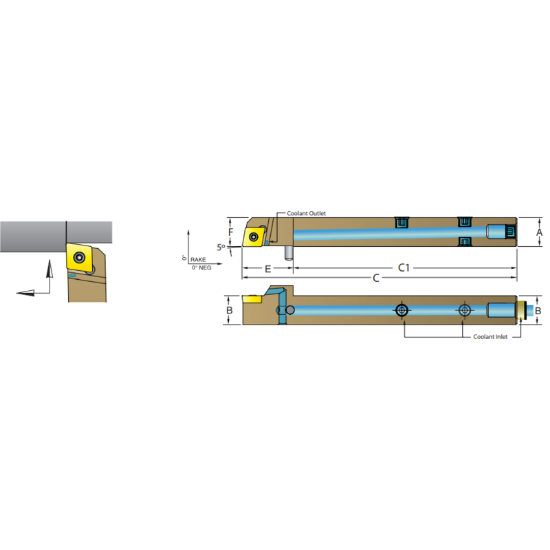

Picture of DORIAN ASCNCL1616-H06 80.0° Swiss Square 0.629 Shank 3.940 OAL

DORIAN ASCNCL1616-H06 80.0° Swiss Square 0.629 Shank 3.940 OAL

ANSI: ASCNCL1616-H06

ISO: ASCNCL1616-H06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60775
Delivery date: 3-5 days
$105.31

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Made In USA No
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 06 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Overall Len 3.9400 100.08MM
Tool Width 0.6300
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CC
Inter/Extern External
Coolant Thru Yes
