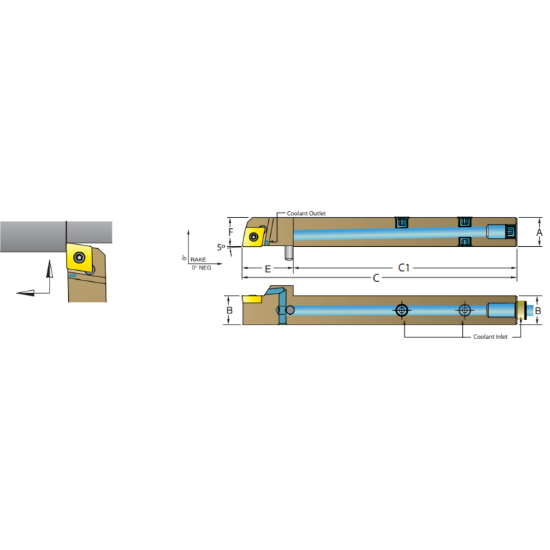

Picture of DORIAN ASCNCL1010-H06 80.0° Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASCNCL1010-H06 80.0° Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASCNCL1010-H06

ISO: ASCNCL1010-H06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60771
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Insert Size Ic 06 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.9840
Overall Len 3.9400 100.08MM
Lead Angle 95°
Tool Width 0.3940
Cutting & Machining Properties
Insert Style CC
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Coolant Thru Yes
