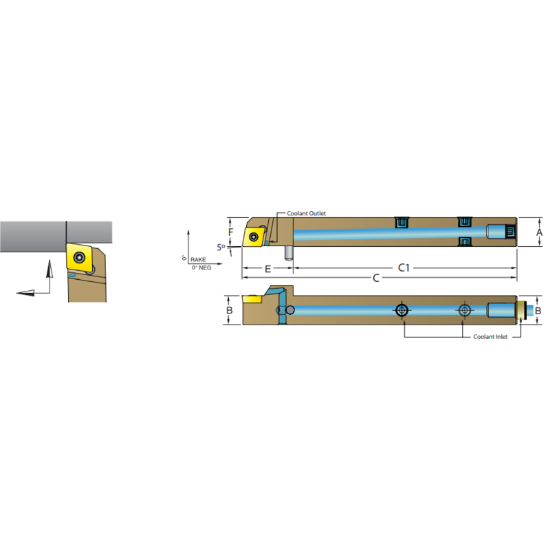

Picture of DORIAN ASCNCL08-2A 80.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASCNCL08-2A 80.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASCNCL08-2A

ISO: ASCNCL08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60699
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Texas
Application Ext.Turning, Swiss
Package Size 1
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 1.0000
Insert Size Ic 06 "21"
Lead Angle 95°
Tool Width 0.5000
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CC
Inter/Extern External
Coolant Thru Yes
