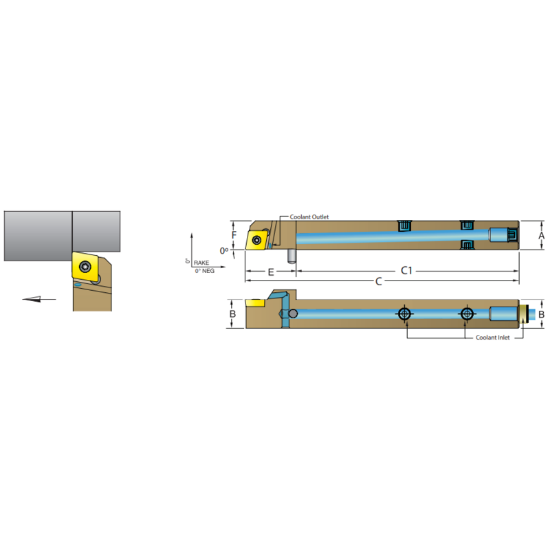

Picture of DORIAN ASCACR1212-H09 80.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASCACR1212-H09 80.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASCACR1212-H09

ISO: ASCACR1212-H09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60760
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Tool Over Hang 0.9840
Insert Size Ic 09 "32"
Tool Width 0.4720
Shank/Pilot Dia 0.4724 12.00MM
Lead Angle 91°
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Coolant Thru Yes
Insert Style CC
Inter/Extern External
