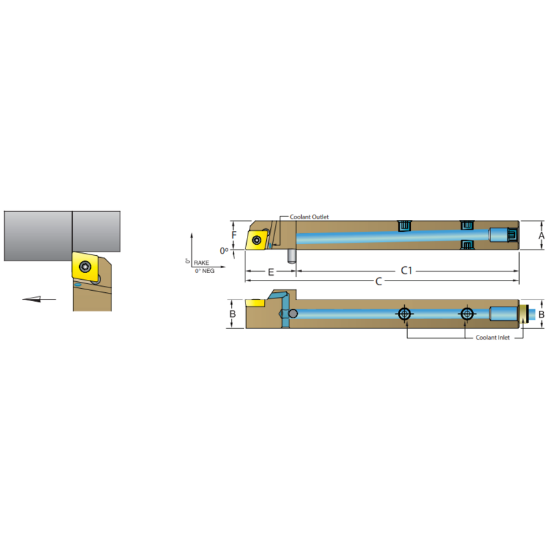

Picture of DORIAN ASCACR08-2A 80.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASCACR08-2A 80.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASCACR08-2A

ISO: ASCACR08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60692
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Overall Len 4.0000 101.60MM
Tool Over Hang 1.0000
Insert Size Ic 06 "21"
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Lead Angle 91°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Coolant Thru Yes
Insert Style CC
Inter/Extern External
