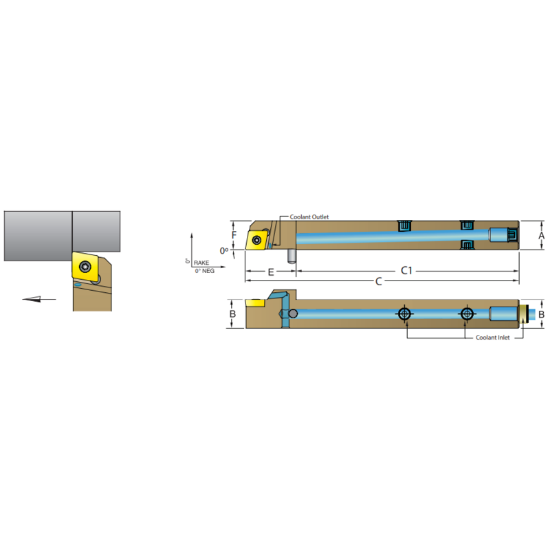

Picture of DORIAN ASCACR06-2A 80.0° Swiss Square 0.375 Shank 4.000 OAL

DORIAN ASCACR06-2A 80.0° Swiss Square 0.375 Shank 4.000 OAL

ANSI: ASCACR06-2A

ISO: ASCACR06-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60691
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Overall Len 4.0000 101.60MM
Insert Size Ic 06 "21"
Machine Side Connection Size 0.3750 9.53MM
Tool Width 0.3750
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Lead Angle 91°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Coolant Thru Yes
Insert Style CC
Inter/Extern External
