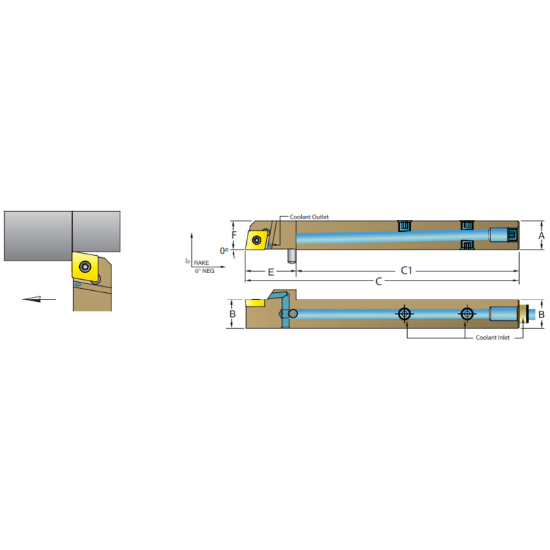

Picture of DORIAN ASCACL1212-H06 80.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASCACL1212-H06 80.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASCACL1212-H06

ISO: ASCACL1212-H06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60757
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Lead Angle 90°
Machine Side Connection Size 0.4724 12.00MM
Overall Len 3.9400 100.08MM
Insert Size Ic 06 "21"
Tool Width 0.4720
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Insert Style CC
Inter/Extern External
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
