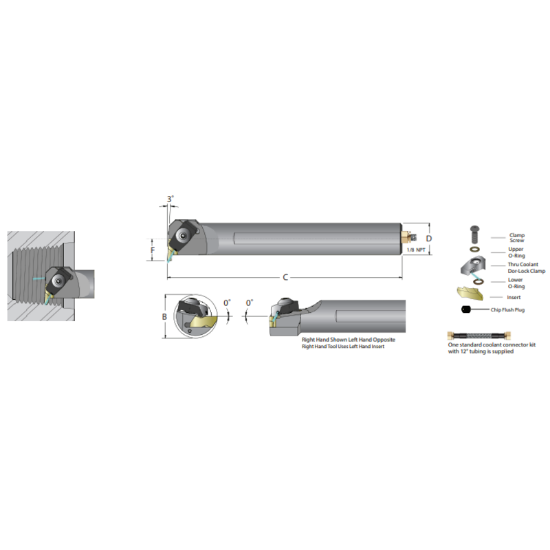

Picture of DORIAN AS-32T-ADNER-4 Boring Bar Top Notch Type Boring Bar 2.000 Shank 12.00 OAL

DORIAN AS-32T-ADNER-4 Boring Bar Top Notch Type Boring Bar 2.000 Shank 12.00 OAL

ANSI: AS-32T-ADNER-4

ISO: AS-32T-ADNER-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53496
Delivery date: 3-5 days
$518.05
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Application Int.Grooving, Int.Threading
Insert Application General Purpose
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 2.0000 50.80MM
Min Bore 2.7500
Insert Size Ic 4
Tool Material Steel
Shank/Pilot Dia 2.0000 50.80MM - 2
Machine Side Connection Type Boring Bar
Overall Len 12.0000 304.80MM
Cutting & Machining Properties
Hand R/L Right
Insert Style TOP NOTCH
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Top Notch
Coolant Thru Yes
Fasteners & Connectors
Clamp/Wedge JSLC-HP73
Clamp Screw JSCS-08
