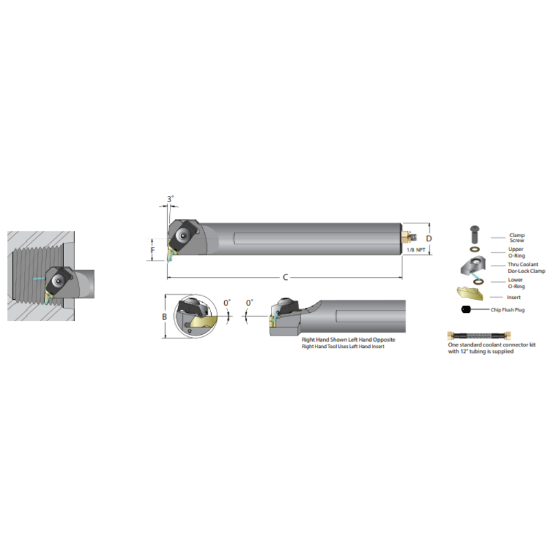

Picture of DORIAN AS-32T-ADNEL-4 Boring Bar Top Notch Type Boring Bar 2.000 Shank 12.00 OAL

DORIAN AS-32T-ADNEL-4 Boring Bar Top Notch Type Boring Bar 2.000 Shank 12.00 OAL

ANSI: AS-32T-ADNEL-4

ISO: AS-32T-ADNEL-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53497
Delivery date: 3-5 days
$518.05
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Grooving, Int.Threading
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert Type Positive
Package Size 10
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 2.0000 50.80MM - 2
Machine Side Connection Size 2.0000 50.80MM
Min Bore 2.7500
Overall Len 12.0000 304.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Top Notch
Coolant Thru Yes
Hand R/L Left
Insert Style TOP NOTCH
Inter/Extern Internal
Fasteners & Connectors
Clamp Screw JSCS-08
Clamp/Wedge JSLC-HP72
