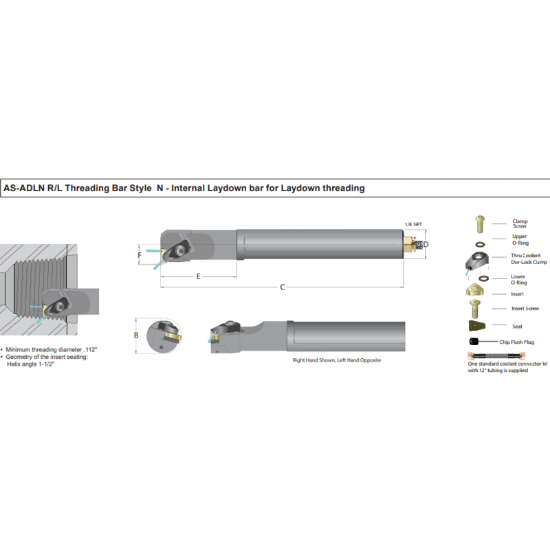

Picture of DORIAN AS-24S-ADLNL-16 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

DORIAN AS-24S-ADLNL-16 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

ANSI: AS-24S-ADLNL-16

ISO: AS-24S-ADLNL-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53540
Delivery date: 3-5 days
$290.67
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Int.Groove Threading, Int.Threading
Shipping State Texas
Package Size 1
Made In USA No
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Overall Len 10.0000 254.00MM
Machine Side Connection Size 1.5000 38.10MM
Machine Side Connection Type Boring Bar
Min Bore 1.8700
Tool Material Steel
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style ISO
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest GXE/I-16
Coolant Thru Yes
Fasteners & Connectors
Clamp/Wedge JSLC-HP16L-N
Clamp Screw JSCS-03
Seat Screw TS-35.6-14M1
