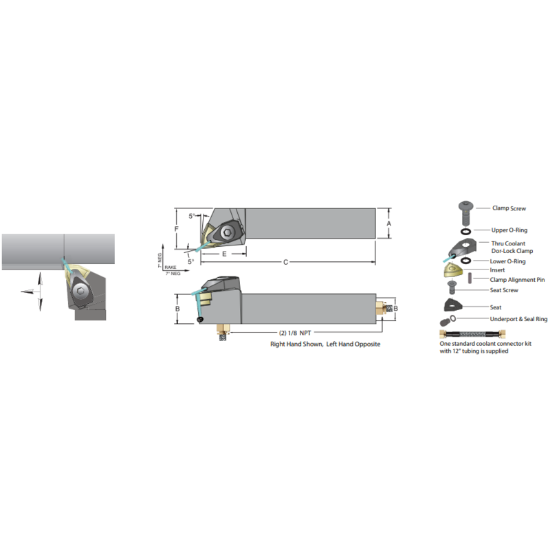

Picture of DORIAN ADWLNR-24-4E Trigon Square 1.500 Shank 7.000 OAL

DORIAN ADWLNR-24-4E Trigon Square 1.500 Shank 7.000 OAL

ANSI: ADWLNR-24-4E

ISO: ADWLNR-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53103
Delivery date: 3-5 days
$241.82

Details

Neg 80°JetStream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ext.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12 "43"
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Inter/Extern External
Cool Sply Type Through
Coolant Thru Yes
Insert Style WN
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge JSLC-HPTW4R/L
Insert Screw SM-S4
Seat Screw IWSN-433
Clamp Screw JSCS-04
