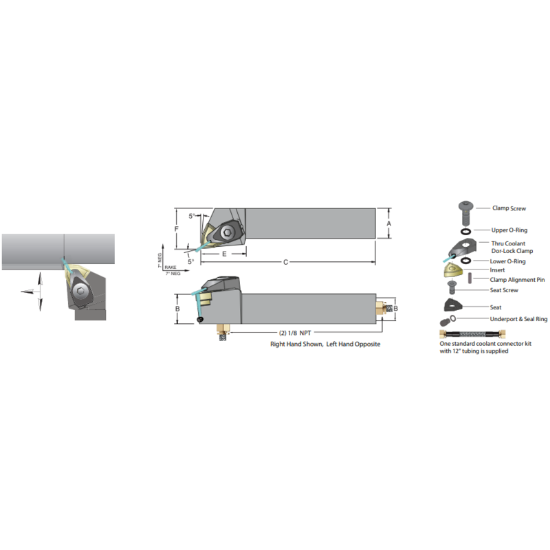

Picture of DORIAN ADWLNR-20-4D Trigon Square 1.250 Shank 6.000 OAL

DORIAN ADWLNR-20-4D Trigon Square 1.250 Shank 6.000 OAL

ANSI: ADWLNR-20-4D

ISO: ADWLNR-20-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53101
Delivery date: 3-5 days
$189.91

Details

Neg 80°JetStream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Lead Angle 95°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Width 1.2500
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Inter/Extern External
Cool Sply Type Through
Coolant Thru Yes
Insert Style WN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Fasteners & Connectors
Clamp Screw JSCS-04
Seat Screw IWSN-433
Clamp/Wedge JSLC-HPTW4R/L
Insert Screw SM-S4
