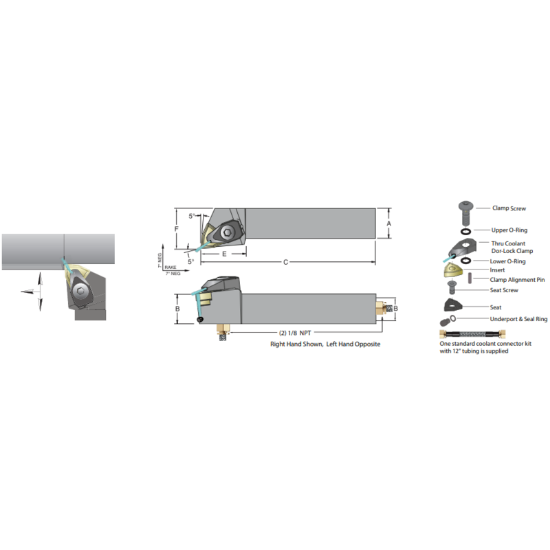

Picture of DORIAN ADWLNR-16-3D Trigon Square 1.000 Shank 6.000 OAL

DORIAN ADWLNR-16-3D Trigon Square 1.000 Shank 6.000 OAL

ANSI: ADWLNR-16-3D

ISO: ADWLNR-16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53097
Delivery date: 3-5 days
$178.70

Details

Neg 80°JetStream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 06 "33"
Tool Width 1.0000
Lead Angle 95°
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Cool Sply Type Through
Insert Style WN
Coolant Thru Yes
Fasteners & Connectors
Clamp Screw JSCS-04
Insert Screw SM-M4-245
Seat Screw IWSN-322
Clamp/Wedge JSLC-HPTW3R/L
