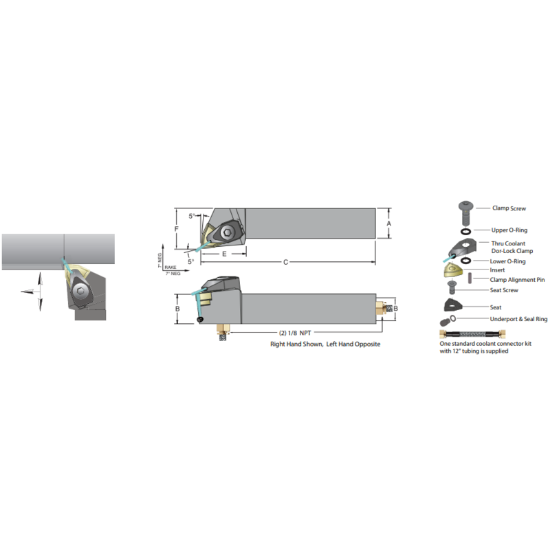

Picture of DORIAN ADWLNR-12-3B Trigon Square 0.750 Shank 4.500 OAL

DORIAN ADWLNR-12-3B Trigon Square 0.750 Shank 4.500 OAL

ANSI: ADWLNR-12-3B

ISO: ADWLNR-12-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53093
Delivery date: 3-5 days
$154.81

Details

Neg 80°JetStream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Texas
Application Ext.Turning
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 06 "33"
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 95°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style WN
Inter/Extern External
Cool Sply Type Through
Fasteners & Connectors
Clamp Screw JSCS-04
Seat Screw IWSN-322
Clamp/Wedge JSLC-HPTW3R/L
Insert Screw SM-M4-245
