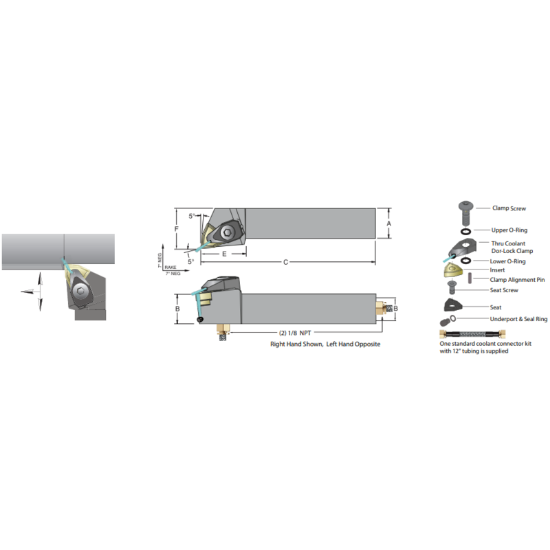

Picture of DORIAN ADWLNL-24-4E Trigon Square 1.500 Shank 7.000 OAL

DORIAN ADWLNL-24-4E Trigon Square 1.500 Shank 7.000 OAL

ANSI: ADWLNL-24-4E

ISO: ADWLNL-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53104
Delivery date: 3-5 days
$241.82

Details

Neg 80°JetStream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Lead Angle 95°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12 "43"
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Left
Inter/Extern External
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style WN
Fasteners & Connectors
Insert Screw SM-S4
Seat Screw IWSN-433
Clamp/Wedge JSLC-HPTW4R/L
Clamp Screw JSCS-04
