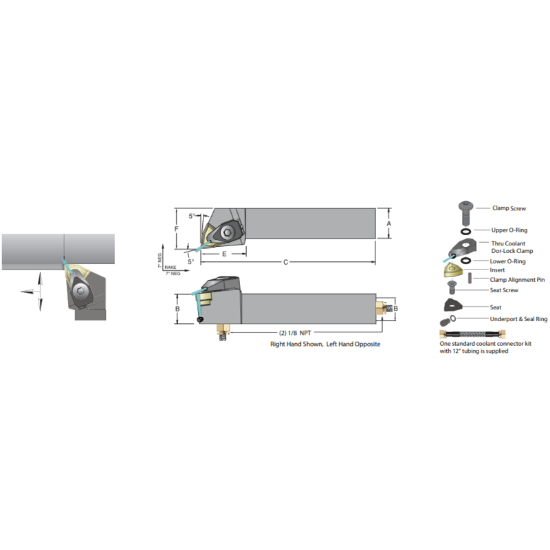

Picture of DORIAN ADWLNL-16-3D Trigon Square 1.000 Shank 6.000 OAL

DORIAN ADWLNL-16-3D Trigon Square 1.000 Shank 6.000 OAL

ANSI: ADWLNL-16-3D

ISO: ADWLNL-16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53098
Delivery date: 3-5 days
$178.70

Details

Neg 80°JetStream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 06 "33"
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 95°
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style WN
Coolant Thru Yes
Cool Sply Type Through
Fasteners & Connectors
Seat Screw IWSN-322
Clamp/Wedge JSLC-HPTW3R/L
Clamp Screw JSCS-04
Insert Screw SM-M4-245
