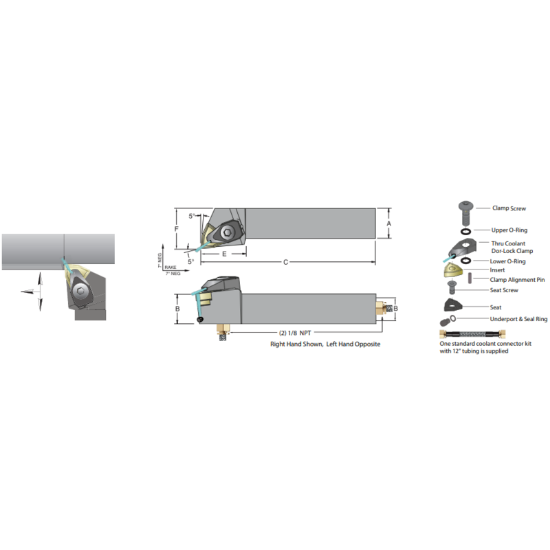

Picture of DORIAN ADWLNL-12-4B Trigon Square 0.750 Shank 4.500 OAL

DORIAN ADWLNL-12-4B Trigon Square 0.750 Shank 4.500 OAL

ANSI: ADWLNL-12-4B

ISO: ADWLNL-12-4B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53096
Delivery date: 3-5 days
$154.81

Details

Neg 80°JetStream Toolholder LH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 12 "43"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Lead Angle 95°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style WN
Hand R/L Left
Cool Sply Type Through
Inter/Extern External
Coolant Thru Yes
Fasteners & Connectors
Clamp/Wedge JSLC-HPTW4R/L
Insert Screw SM-S4
Clamp Screw JSCS-04
Seat Screw IWSN-433
