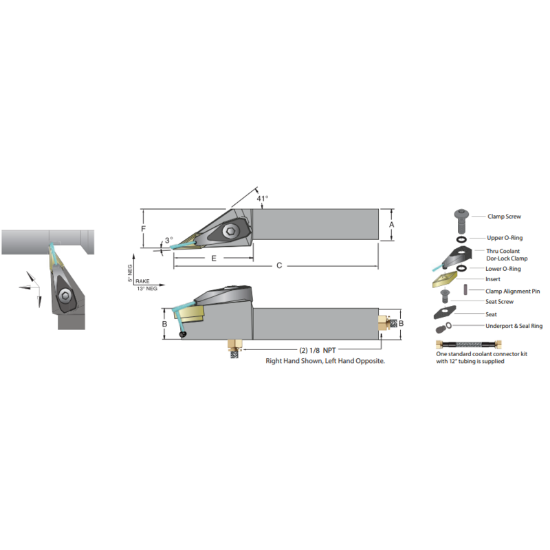

Picture of DORIAN ADVJNR-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

DORIAN ADVJNR-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

ANSI: ADVJNR-20-3D-001

ISO: ADVJNR-20-3D-001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53085
Delivery date: 3-5 days
$203.47

Details

Neg 35° JetStream ToolholderRH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Application Ext.Turning
Package Size 1
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Clearance Angle 44.0°
Lead Angle 93°
Tool Width 1.2500
Cutting & Machining Properties
Insert Style VN
Coolant Thru Yes
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Fasteners & Connectors
Seat Screw JV-322
Clamp/Wedge JSLC-HPV3
Clamp Screw JSCS-04
Insert Screw SM-M3
