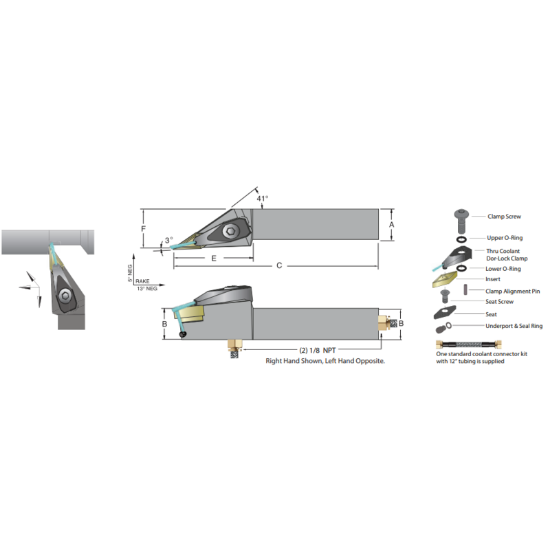

Picture of DORIAN ADVJNR-16-3D 35.0° Square 1.000 Shank 6.000 OAL

DORIAN ADVJNR-16-3D 35.0° Square 1.000 Shank 6.000 OAL

ANSI: ADVJNR-16-3D

ISO: ADVJNR-16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53083
Delivery date: 3-5 days
$191.45

Details

Neg 35° JetStream ToolholderRH

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Ext.Turning
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Insert Size Ic 16 "33"
Tool Width 1.0000
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 44.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Coolant Thru Yes
Cool Sply Type Through
Hand R/L Right
Insert Style VN
Fasteners & Connectors
Insert Screw SM-M3
Seat Screw JV-322
Clamp/Wedge JSLC-HPV3
Clamp Screw JSCS-04
