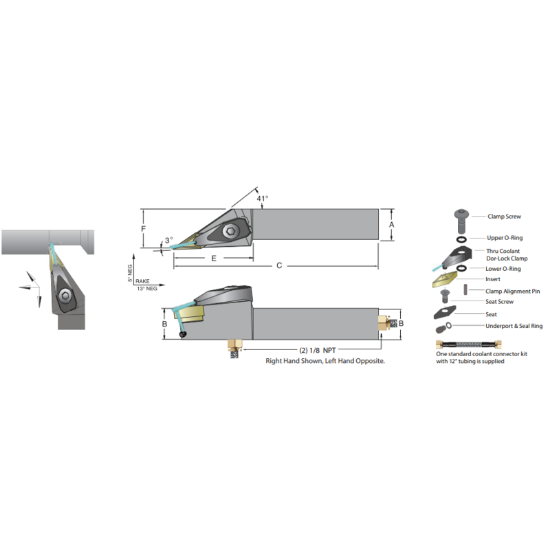

Picture of DORIAN ADVJNR-12-3B 35.0° Square 0.750 Shank 4.500 OAL

DORIAN ADVJNR-12-3B 35.0° Square 0.750 Shank 4.500 OAL

ANSI: ADVJNR-12-3B

ISO: ADVJNR-12-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53081
Delivery date: 3-5 days
$178.60

Details

Neg 35° JetStream ToolholderRH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Lead Angle 93°
Overall Len 4.5000 114.30MM
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 44.0°
Insert Size Ic 16 "33"
Cutting & Machining Properties
Insert Style VN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
Cool Sply Type Through
Inter/Extern External
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge JSLC-HPV3
Insert Screw SM-M3
Seat Screw JV-322
Clamp Screw JSCS-04
