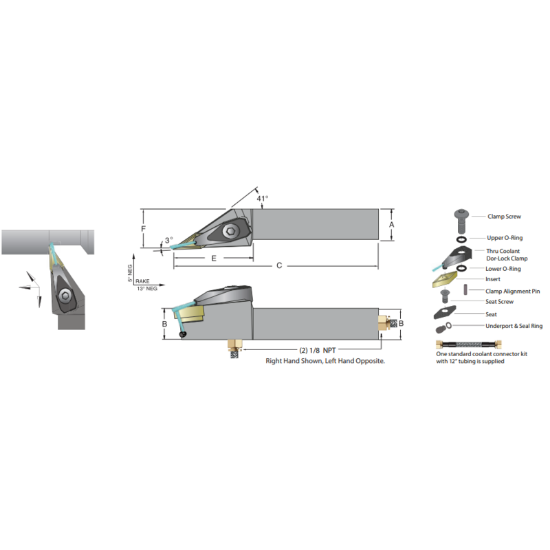

Picture of DORIAN ADVJNL-24-3E 35.0° Square 1.500 Shank 7.000 OAL

DORIAN ADVJNL-24-3E 35.0° Square 1.500 Shank 7.000 OAL

ANSI: ADVJNL-24-3E

ISO: ADVJNL-24-3E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53088
Delivery date: 3-5 days
$259.09

Details

Neg 35° JetStream ToolholderLH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 16 "33"
Lead Angle 93°
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Clearance Angle 44.0°
Cutting & Machining Properties
Hand R/L Left
Cool Sply Type Through
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
Fasteners & Connectors
Clamp/Wedge JSLC-HPV3
Seat Screw JV-322
Insert Screw SM-M3
Clamp Screw JSCS-04
