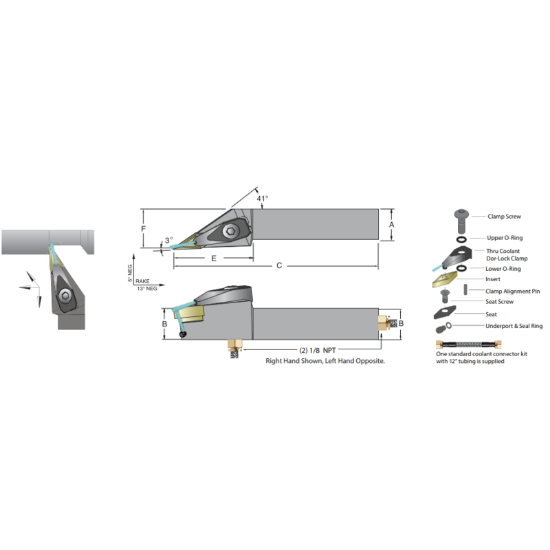

Picture of DORIAN ADVJNL-16-3D 35.0° Square 1.000 Shank 6.000 OAL

DORIAN ADVJNL-16-3D 35.0° Square 1.000 Shank 6.000 OAL

ANSI: ADVJNL-16-3D

ISO: ADVJNL-16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53084
Delivery date: 3-5 days
$191.45

Details

Neg 35° JetStream ToolholderLH

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 44.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 16 "33"
Lead Angle 93°
Tool Width 1.0000
Cutting & Machining Properties
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VN
Coolant Thru Yes
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge JSLC-HPV3
Insert Screw SM-M3
Clamp Screw JSCS-04
Seat Screw JV-322
