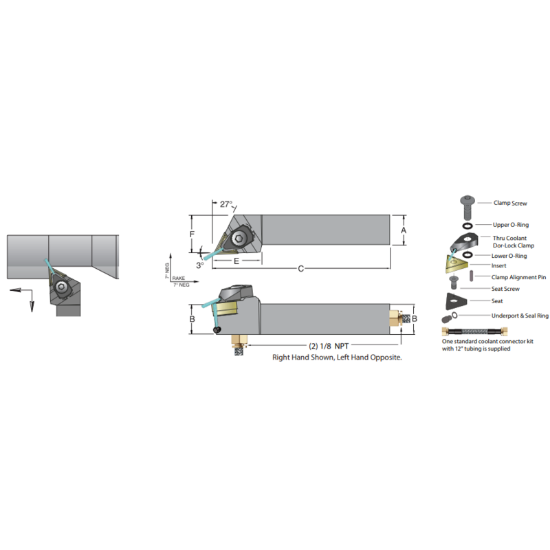

Picture of DORIAN ADTJNR-24-4E Triangle Square 1.500 Shank 7.000 OAL

DORIAN ADTJNR-24-4E Triangle Square 1.500 Shank 7.000 OAL

ANSI: ADTJNR-24-4E

ISO: ADTJNR-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53073
Delivery date: 3-5 days
$241.82

Details

NegTriangleJetStreamToolhldrRH

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 22 "43"
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Lead Angle 93°
Clearance Angle 22.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Machine Side Connection Size 1.5000 38.10MM
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Cool Sply Type Through
Hand R/L Right
Insert Style TN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Fasteners & Connectors
Clamp/Wedge JSLC-HPCTW-4N
Clamp Screw JSCS-04
Seat Screw JT-433
Insert Screw SM-S4
